Product Description

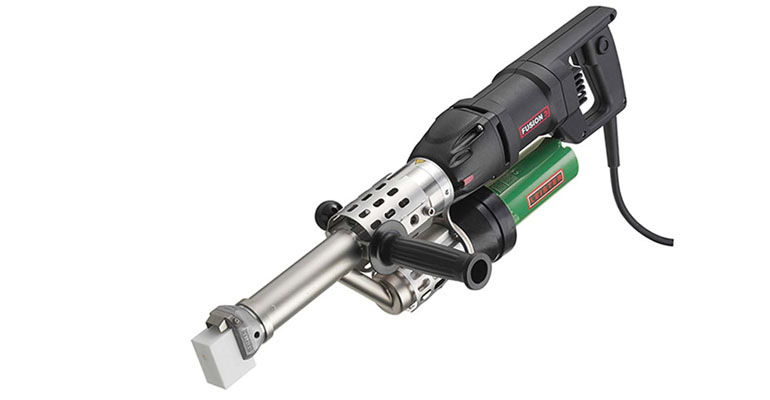

With its long and narrow shape, the FUSION 3 enables comfortable work, even on the floor. The somewhat shorter version (FUSION 3C) provides an astounding output volume of up to 3.6 kilograms (eight pounds) per hour.
- High welding performance
- Compact and handy
- Motor start-up protection prevents cold start
- Dual-sided, twist-free wire intake

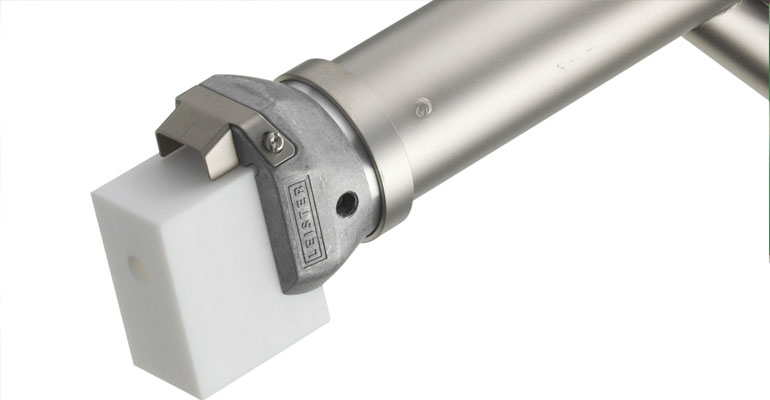

- 360° rotatable welding shoe
Technical Data
- Welding rod : 3 – 4 mm ∅
- Output PE ∅ 3 : 2.0 – 2.5 kg / h
- Output PE ∅ 4 : 2.7 – 3.6 kg / h
- Output PP ∅ 3 : 1.8 – 2.3 kg / h
- Output PP ∅ 4 : 2.5 – 3.4 kg / h
- Voltage : 230 V
- Power : 3500 W
- Material : PE / PP
- Max. air outlet temperature : 350 °C
- Max. Plastification temperature : 350 °C
- Output PE ∅ 5 : 2.7 – 3.6 kg / h
- Output PP ∅ 5 : 2.5 – 3.4 kg / h
- Size (L × W × H) : 670 × 90 × 180 mm
- Weight : 7.2 kg
