• PHD Pro 2kV - 40kV pinhole detector - complete kit
  • PHD Pro 2kV - 40kV pinhole detector - complete kit

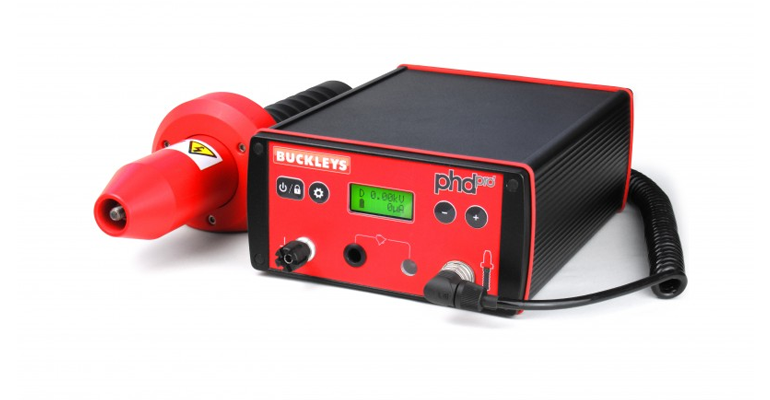

The PHD Pro’40 range of high-voltage DC holiday detectors are ideal for rapid and effective holiday testing of a wide range of non-conductive coatings and linings for porosity, faults and defects.

Battery-powered and fully portable; the PHD Pro’40 has an output voltage range of 2-40kV, enabling it to perform high-voltage holiday tests on coating thicknesses from 64μA to 25.6mm.

The PHD Pro’40C (complete kit) comprises an extensive range of accessories and electrodes; supplied in a robust, foam-lined case.

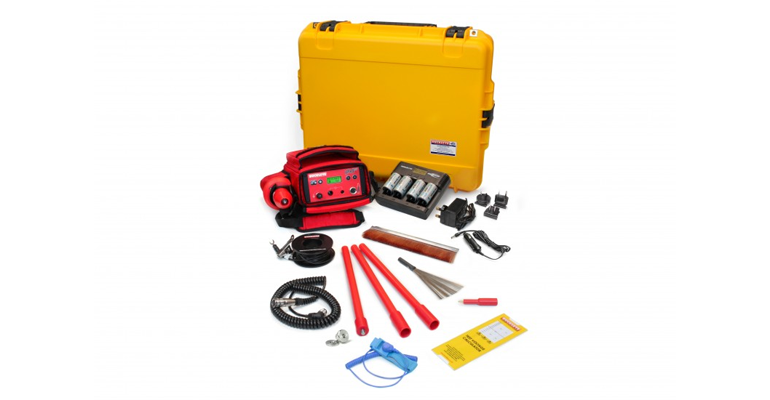

The Complete kit includes:

  • PHD Pro’40 holiday detector, probe handle & interconnecting lead
  • Drum brush electrode
  • 4 x rechargeable D-cell batteries and charger
  • 5m earth lead on reel
  • ESD anti-static wrist band
  • 75mm pointed probe electrode
  • 2 x 332mm insulated mid-section extension rod
  • 1 x 332mm insulated end-section extension rod
  • 250mm straight phosphor-bronze brush electrode (45° angled)
  • Knurled thumb-nut & back nut (for electrode attachment)
  • Test voltage calculator
  • Carry bag with shoulder strap
  • User instruction manual and calibration certificate
  • Supplied in a robust, foam lined, high-visibility transit case kit contains everything required to test a variety of coatings and its high-visibility transit case protects the PHD Pro’40C during transport whilst remaining conveniently portable.
  • Output voltage range : 2 to 40kV DC
  • Alarm sensitivity range : 10 to 450μA (pre-set to 350μA)
  • Coating thickness range : 64μm to 25.6mm
  • Built-in test voltage formula : NACE SP0274
  • Unit weight : 1.64Kg
  • Unit dimensions : 172mm x 85mm x 235mm
  • Handle weight : 720g
  • Handle dimensions : 290mm x 85mm
  • Packed weight : 13.6kg
  • Dimensions (packed) : 510mm x 250mm x 630mm
